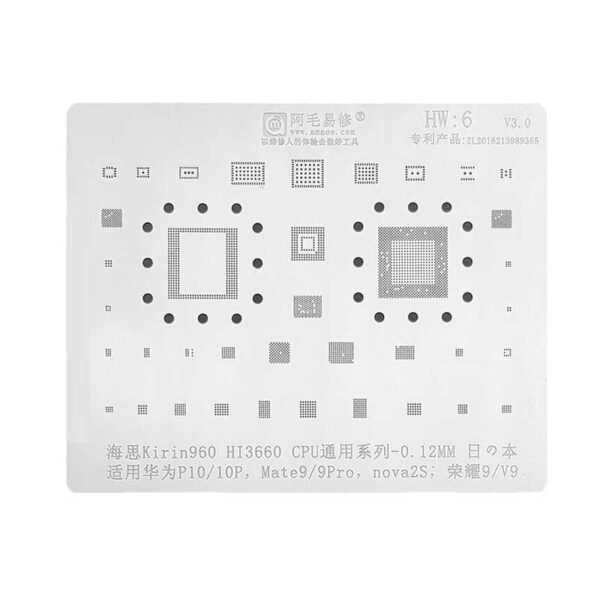

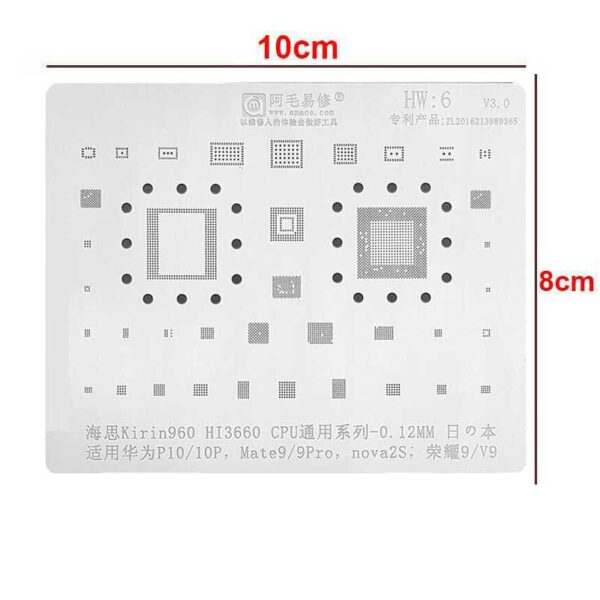

Amaoe Hw-6 Stencil

Uses of Amaoe HW-6 Stencil:

1. CPU Reballing (Huawei)

• Specifically designed for Huawei processors and chipsets.

• Helps accurately place solder balls or paste on CPU pads.

2. IC Rework and Replacement

• Ideal for removing, cleaning, and reinstalling ICs on Huawei motherboards.

• Ensures precise alignment during IC installation.

3. BGA (Ball Grid Array) Rework

• Perfect for BGA chip repair jobs on Huawei devices.

• Prevents misalignment and improves soldering quality.

4. Solder Paste Application

• Used for uniform solder paste application on microchips.

• Prevents short circuits due to excess solder.

5. Professional Use

• A must-have tool for chip-level repair engineers who frequently work on Huawei phones.

• Durable and heat-resistant, suitable for hot air rework stations.

Best For:

• Huawei mobile phone technicians

• PCB/logic board repair labs

• Chip-level service centers

• Precision reballing stations

Mechanic/Amaoe HW6 Stencil

Stencil Purpose: Amaoe Hw-6 Stencil is used for the precise application of solder paste to solder pads on a PCB. This solder paste serves as a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process.

Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component’s pads with precision.

Compatible Devices: The Amaoe Hw-6 Stencil is likely designed for use with specific models. Each stencil is typically designed to match the component layout of a particular device or series.

Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads.

Stencil Material: Amaoe Hw-6 Stencil is commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes…

Amaoe Stencil FAQ

1. What is an Amaoe stencil, and what is it used for?

An Amaoe stencil is a precision tool crafted from high-quality Japanese steel, primarily used in mobile device repairs. It facilitates the accurate application of solder paste or solder balls onto specific components, such as BGA (Ball Grid Array) chips, ensuring reliable connections during reballing and soldering processes.

2. What materials are Amaoe stencils made from?

Amaoe stencils are made from super-hard Japanese steel sheets, known for their durability and resistance to high temperatures. This ensures longevity and consistent performance during repeated soldering tasks.

3. Are Amaoe stencils reusable?

Yes, Amaoe stencils are designed for multiple uses. Their robust construction allows technicians to clean and reuse them without compromising precision.

4. What types of components are compatible with Amaoe stencils?

Amaoe offers a diverse range of stencils compatible with various components, including:

• CPUs: e.g., MTK, Qualcomm, Exynos
• Memory ICs: e.g., eMMC, eMCP, UFS
• Power ICs: e.g., MT6356W, MT6322
• Device-Specific Components: e.g., iPhone 6-16 Pro Max, Samsung S21 series

5. How do I use an Amaoe stencil for reballing?

To use an Amaoe stencil:

1. Align the stencil over the component or PCB.
2. Apply solder paste or place solder balls onto the stencil’s apertures.
3. Remove the stencil carefully.
4. Heat the assembly to melt the solder, establishing connections

Amaoe Hw-6 Stencil
