Amaoe Mi-13 Stencil For Redmi Note9 /Note9 pro

AMAOE MI-13 STENCIL For Redmi Note9/Note9 pro

Stencil Purpose: Stencils are used for the precise application of solder paste to solder pads on a PCB. This solder paste serves as a temporary adhesive that holds surface-mount components (SMDs) in place during the soldering process.

Reballing: Stencils are also commonly used in reballing processes, which involve removing and then re-soldering a component, such as a BGA (Ball Grid Array) chip. The stencil helps apply solder balls to the component’s pads with precision.

Compatible Devices: The stencil is likely designed for use with specific models. Each stencil is typically designed to match the component layout of a particular device or series.

Aperture Design: The stencil features a pattern of tiny apertures (holes) that align with the solder pads on the PCB or component. When solder paste is applied over the stencil and pushed through these apertures, it deposits a controlled amount of solder onto the pads.

Stencil Material: Stencils are commonly made from stainless steel or other durable materials to withstand repeated use and exposure to high-temperature soldering processes.

What Is the Amaoe MI-13 Stencil Used For?

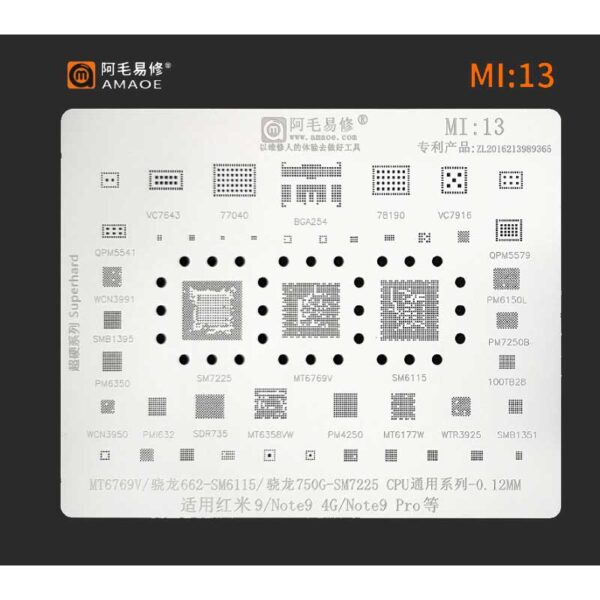

The Amaoe MI-13 Stencil is a professional-grade BGA reballing stencil made of durable stainless steel. It’s specifically crafted for repairing or reballing IC chips—including CPU, RAM, power, Wi-Fi, and audio circuits—on Redmi Note 9 and Note 9 Pro motherboards. Its high heat resistance and compatibility with various rework stations make it a reliable tool for technicians.

Supported IC Models

This stencil supports a wide range of IC chips commonly found in those devices, including:

• • VC7643
  • 77040
  • BGA254
  • 78190
  • VC7916
  • QPM5541
  • QPM5579
  • WCN3991
  • SMB1395
  • PM6350
  • WCN3950
  • PM6150L
  • PM7250B
  • SM7225CPU
  • MT6769V CPU
  • SM6115 CPU
  • 100TB28
  • PMI632
  • SDR375
  • MT6358W
  • PM4250
  • MT6177
  • WTR3925
  • SMB1351

Primary Uses & Benefits

1. Precision Solder Application
   Enables precise alignment of solder paste or balls onto the BGA pads, improving repair quality and reliability.

2. Efficient Reballing Process
   Compatible with hot-air rework systems, allowing fast and accurate reballing of chips with high success rates.

3. Multi-IC Support
   Designed to handle various chip types on one stencil, reducing the need for multiple tools and saving time.

4. Durable & Reusable
   Constructed from stainless steel, it’s built to withstand heat and repeated use in professional repair environments.

Frequently Asked Questions (FAQ) – Amaoe MI-13 Stencil for Redmi Note 9 / Note 9 Pro

1. What is the Amaoe MI-13 stencil used for?

It’s a BGA reballing stencil used to accurately place solder paste or solder balls on IC chips such as CPU, RAM, power IC, Wi-Fi IC, and audio IC in Redmi Note 9 and Note 9 Pro motherboards.

2. Which chips does it support?

The MI-13 stencil supports multiple IC types, including:

• CPU: Snapdragon 750G (SM7225), Helio G85 (MT6769V), SM6115

• Power IC: PM6350, PM4250

• Wi-Fi & Audio ICs

• Other support chips: VC7643, QPM5541, and more.

3. What material is it made from?

It’s made from high-quality stainless steel, which is heat-resistant and durable for repeated use.

4. Can the stencil be reused?

Yes. With proper care (avoiding bending, scratches, and residue build-up), it can be used multiple times.

5. What thickness is the stencil?

The Amaoe MI-13 stencil is typically 0.12 mm thick, allowing for precise solder application while withstanding high heat.

6. What tools are needed to use this stencil?

Common tools include:

• Hot air rework station or BGA reflow machine

• Solder paste or solder balls

• Flux for better adhesion

• PCB holder or fixture

• Cleaning materials (e.g., solder wick, isopropyl alcohol)

7. How do I clean the stencil after use?

After reballing, clean it with isopropyl alcohol (IPA) and a lint-free cloth or soft brush. Avoid aggressive scraping to prevent damage.

8. Can I use it for other phone models?

While it’s designed for Redmi Note 9 and Note 9 Pro, some chip layouts may match other Xiaomi or similar devices. However, using the correct stencil for each model is recommended.

9. Why is a stencil necessary for IC repair?

A stencil ensures accurate, uniform solder placement, making reballing faster, cleaner, and more reliable than manual ball placement.
