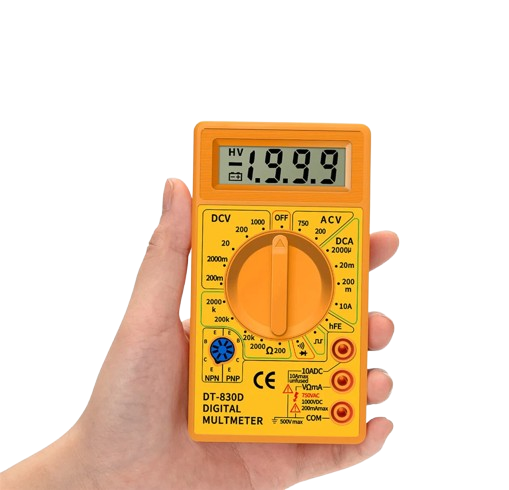

DT830D digital multimeter
Key Features and Specifications
The DT830D Digital Multimeter is a compact, entry-level, handheld measuring instrument designed for basic electrical testing in DIY, hobbyist, and household applications. It is known for being budget-friendly and easy to use, especially for beginners.
Key Features
- Display: 3.5-digit LCD display with a maximum reading of 1999.
- Safety: Includes overload protection and low battery indication.
- Power Source: Requires a standard 9V battery for operation.
- Portability: Features a compact and lightweight (approx. 150 g) handheld design.
- Measurements:
- DC Voltage: Ranges from 200 mV to 1000 V.
- AC Voltage: Ranges from 200V to 750V.
- DC Current: Ranges from 200 µA to 10 A.
- Resistance: Ranges from 200 Ω to 2000 kΩ (2 MΩ).
- Diode Test: Yes.
- Continuity Test: Yes, with an audible buzzer.
- Transistor Test: Includes an hFE measurement function (some models).
- Signal Output: Can produce a square wave signal (50 Hz).
