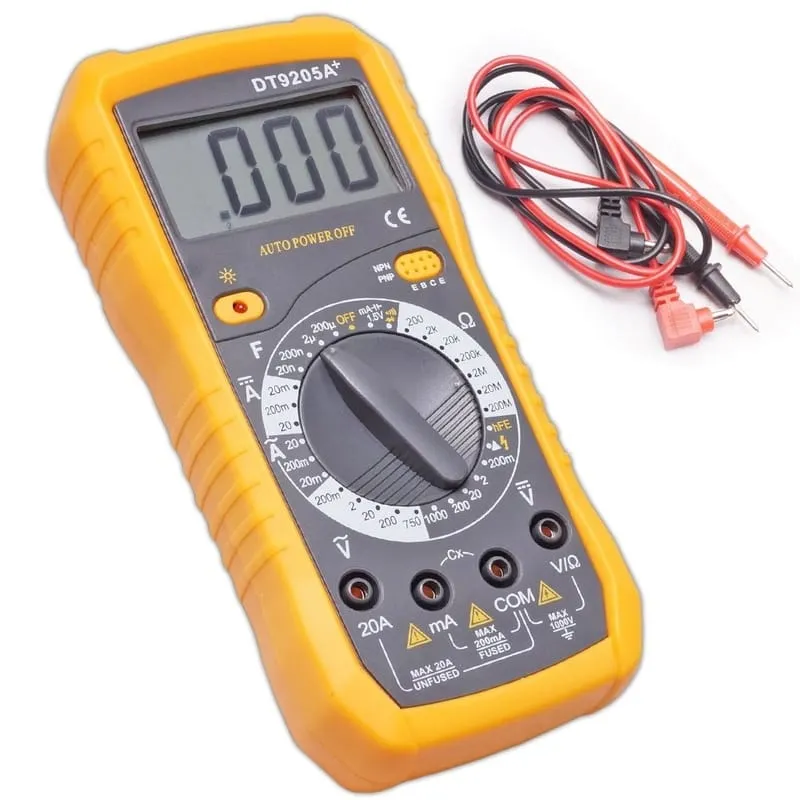

DT9205A+ digital multimeter
Key Features and Specifications
The DT9205A+ Digital Multimeter is a versatile and low-cost tool for measuring various electrical quantities, popular among hobbyists and professionals for general-purpose use. It features a large LCD display, auto power off, and overload protection.
The DT9205A+ is a manual-ranging digital multimeter capable of performing a wide array of electrical tests.
Key Features
- Measurements: It can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and continuity, and perform diode and transistor (hFE) tests.
- Safety & Protection: The device includes overload protection using PTC protection circuits for resistance/frequency measurements and double current fuses for current measurements (except the 20A range).
- Display: Features a large, high-contrast LCD screen, some versions with a backlight, for easy reading. The screen can be adjusted to a visual angle of about 70° for optimal viewing.
- Usability: Includes an auto power-off function after approximately 25 minutes of inactivity to save battery life, a low-battery indicator, a built-in kickstand, and a protective rubber side cover.
- Power Source: The multimeter is typically powered by a single 9V 6F22 battery.
Product Specification:-
| Category | Range |
|---|---|
| DC Voltage | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Voltage | 200 mV, 2 V, 20 V, 200 V, 750 V |
| DC Current | 20 mA, 200 mA, 20 A (and microampere ranges) |
| AC Current | 20 mA, 200 mA, 2 A |
| Resistance | 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ, 200MΩ |
| Capacitance | 20 nF, 200 nF, 2 µF, 200 µF |
