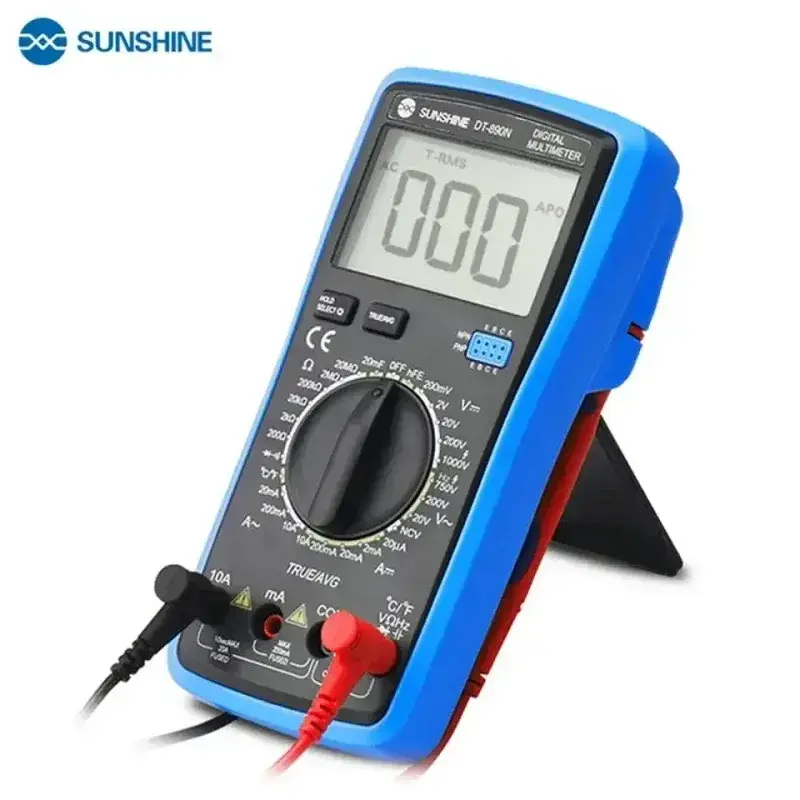

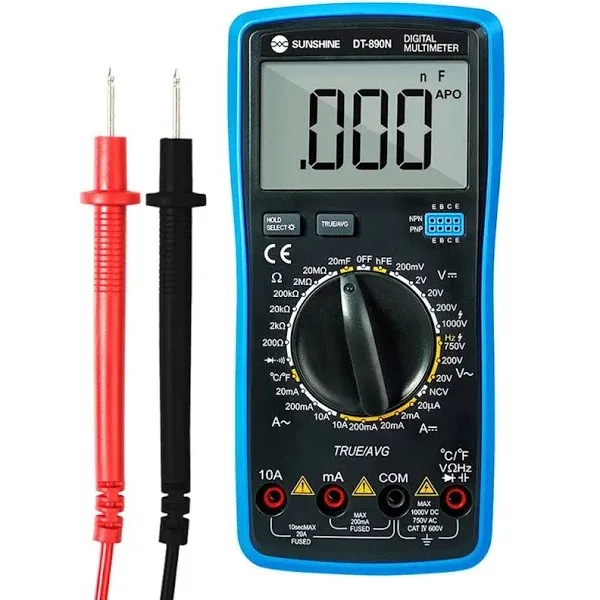

Sunshine DT-890N True RMS Digital Multimeter
Key Features and Specifications
The Sunshine DT-890N True RMS Digital Multimeter is a versatile, handheld electrical testing tool known for its True RMS measurement, intelligent anti-burning protection, and ability to measure a wide array of electrical parameters. It is designed for use in various applications, including electronics repair and industrial maintenance.
Key Features
- True RMS Measurement: Provides accurate and stable readings for both standard and non-linear electrical loads.
- Intelligent Anti-Burning Protection: Features built-in overload/anti-burning protection to safeguard the device from damage during misuse, enhancing reliability and safety.
- Multiple Measurements Functions: Measures AC/DC voltage, AC/DC current, resistance, capacitance, and temperature.
- Induction Electroporbe Function: The meter will beep when current is detected, providing an added safety feature.

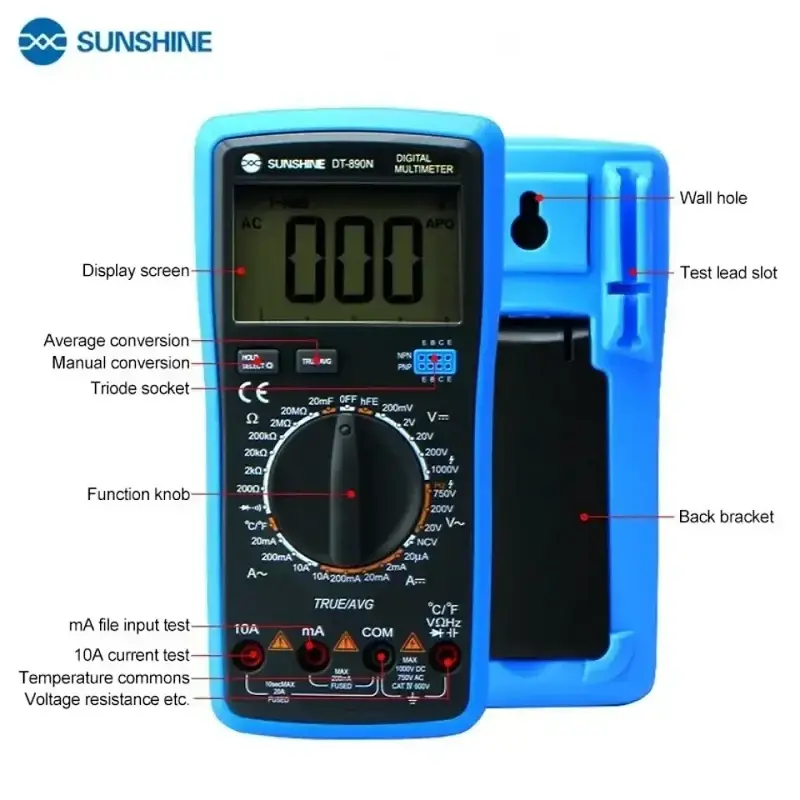

- User-Friendly Display: Features an LCD screen with a backlit display that simultaneously shows a digital readout and a simulated analog bar graph for easy and direct readings.
- Automatic Features: Includes automatic identification of measurement ranges (auto-ranging), automatic zeroing, and auto polarity selection.
- Data Hold Function: Allows users to freeze the current reading on the display for easier recording and reference.
- Automatic Shutdown: The device automatically powers off after about 25 minutes of inactivity to conserve battery power.

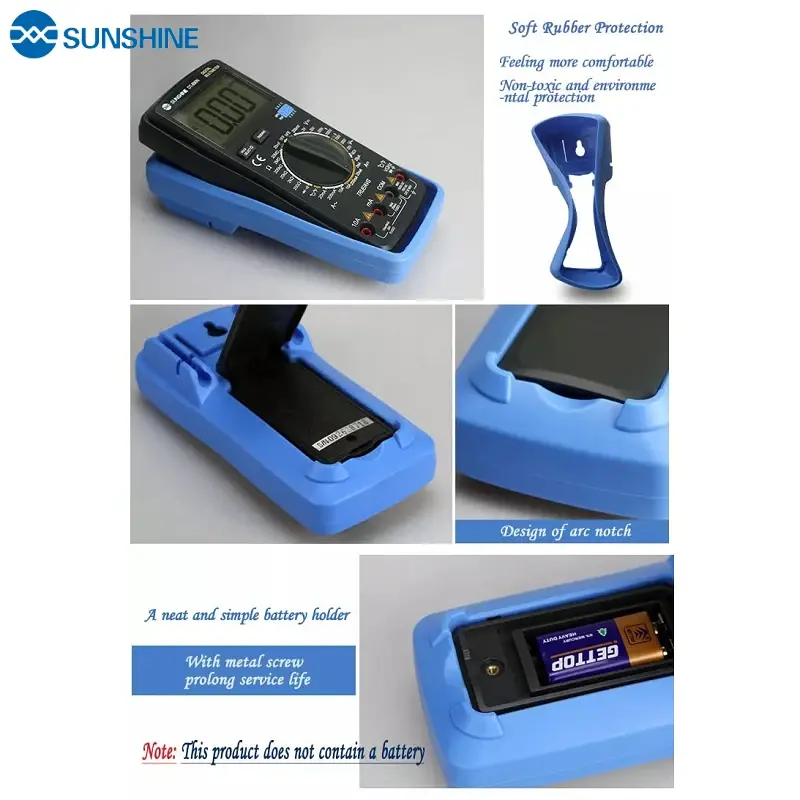

- Durable Design: Features a high-class, streamlined body designed for comfortable handling and durability.
Product Specification:-
| Specification | Detail |
|---|---|
| Measurement Functions | Voltage (AC/DC), Current (AC/DC), Resistance, Capacitance, Temperature, Diode, Continuity |
| AC Voltage Range | Up to 750V |
| DC Voltage Range | Up to 1000 V |
| AC/DC Current Range | Up to 10A |
| Resistance Range | Up to 60 MΩ |
| Capacitance Range | Up to 6000 μF |
| Temperature Range | -20°C to 1000°C |
| Display | LCD with backlight; simultaneous number and simulated bar display |
| Safety Features | Intelligent anti-burning protection, induction electroporbe function (beeps when current is detected), overload protection |
| Additional Features | True RMS measurement for accurate readings, auto-ranging, automatic shutdown after about 25 minutes of inactivity, data hold function |
| Power Source | 9V battery |
| Dimensions | 185 x 90 x 45 mm |
